HLS 4 with coil-over Variante 3

SKU: 35271403

GTIN: 4250173374149

Porsche 911 Carrera 4/4S Coupé, Cabrio, Targa (Typ 996, ab 09.97) bis 825 kg VA-Last und bis 1180 kg HA-Last

8.412,54 €

incl. 19% VAT , plus (Paket)

Manufacturers recommended retail price: 8.672,72 €

(Save 3%, i.e. 260,18 €)

Delivery time: 11 - 12 Workdays (DE - int. shipments may differ)

Delivery time: 11 - 12 Workdays (DE - int. shipments may differ)

#productDetails.USP1Text#

#productDetails.USP2Text#

#productDetails.USP3Text#

#productDetails.USP4Text#

#productDetails.USP5Text# #productDetails.USP5Text2#

#productDetails.USP6Text#

KW HLS - HLS - Hydraulic Lift System - makes your super-sportscar suitable for daily use.

For negotiating over obstacles for sporty cars with low ground clearance. With the HLS lift system you can lift your lowered car, to safely negotiate obstacles such as speed bump,railroad crossings, garages and underground car parks. Depending on the version of the installed HLS lift kit, your vehicle can be hydraulically lifted either at the front axle or on both axles by up to 45 mm.

KW HLS Lift kit – continuous lowering and more ground clearance at the push of a button

With the HLS Lift Kit, obstacles such as parking garages, garage entrances, speed bumps or rough roads are no problem even for lowered vehicles or vehicles with little ground clearance. The vehicle equipped with the lift kit can be lifted by up to 45 mm in order to drive over obstacles that would not be possible with the normal vehicle height. Depending on the vehicle type and model, the lift kit is available as a vehicle-specific solution or as an individual conversion kit.

The lift kit is available in two different versions: HLS 2, which is installed on the front axle and HLS 4, which can also be installed on the rear axle if required, allowing the entire vehicle to be lifted. The hydraulic cylinder unit is mounted on the coilover suspension between the spring plate and the spring. The advantage of a hydraulic system is that during driving no compression (movement) of the extended cylinder unit (no unwanted additional suspension) occurs.

The KW HLS lift kit is available as a complete suspension solution in combination with a KW coilover suspension or as a retrofit kit for standard suspension systems as well as KW coilovers, consisting of springs, adaptations, hydraulic cylinders and complete control unit.

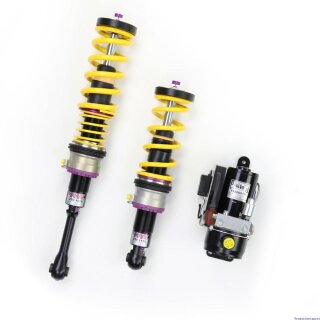

Scope of delivery: HLS 4 with coil-over V3 and Hydraulic Lift System for the front and rear axle

KFZ Hersteller:	Porsche
KFZ Modell:	911
KFZ Typ:	996
Fitting for:	Porsche 911 Carrera 4/4S Coupé, convertible, Targa (type 996, from 09.97) up to 825 kg FA-load and up to 1180 kg RA-load
Adjustment range in mm:	FA 25-40 / RA 20-40 mm
Note 1:	Height adjustable on the front and rear axles (threaded strut housings)
Note 2:	If the Porsche Motorsport rear axle top mount # 99633301190 is installed, the KW top mount adapter set # 68510036, price 99,- € incl. VAT, has to be used.
Note 3:	The battery has to be modified for vehicles with factory battery longer than 278 mm. We recommend Varta Silver Dynamic 77Ah or Bosch S5 77Ah (not included in the kit).
Note 4:	Dampers are adjusted by easily operating adjustment wheels. Rebound is only adjustable if the top of the piston rod is accessible. This will depend on the vehicle construction.
